Gear Pump
Designed and manufactured according to customer ODM or OEM requirements; widely used in medical auxiliary equipment, automatic soap dispensers, and warm/cold water circulation, etc. Specifications: DC 3 - 12V, Flow 10-150ml/min, Pressure 4-10PSI.
What is a gear pump?
A gear pump is a device that helps transport liquids by generating pressure through the meshing of gears. The gear pump utilizes two gears that continuously mesh together to create a pressure differential, which facilitates the movement of the liquid. When the gears rotate, low pressure or a vacuum is created at the inlet, causing liquid to flow into the pump. At the outlet, the meshing of the gears generates high pressure, forcing the liquid out. A gear pump is also known as a positive displacement pump because the amount of liquid discharged in each cycle is fixed and not affected by changes in system pressure. This ensures a stable flow rate that is proportional to the pump's speed. The flow rate depends on the pump's speed and is generally stable and predictable, allowing for precise flow control.
What are the types of gear pumps?
- External Gear Pump：This type of gear pump typically has a simple and efficient design, where two identical gear wheels mesh together and rotate in opposite directions. These two gears are located within the pump casing, and their centers are on the same axis. A drawback of external gear pumps is that they tend to produce more noise.
- Internal Gear Pump：This pump consists of an internal gear and an external gear, where the internal gear is located inside the external gear, and the centers of the two gears are not on the same axis. Internal gear pumps usually have a crescent-shaped separator to prevent backflow and increase fluid pressure. This design allows for very smooth operation and lower noise levels, though internal gear pumps have a higher likelihood of damage compared to external gear pumps.
What industries use gear pumps?
Gear pumps are commonly used to transport high-viscosity liquids, such as lubricating oil, engine oil, fuel liquids, hydrocarbons, syrup, chocolate, and pulp. Therefore, they are often used in industries such as chemicals, food processing, and papermaking.
Overall, gear pumps are lightweight, easy to transport, and can effectively improve work efficiency.
We manufacture a wide range of gear pumps. With many years of research and development experiences, YEH DER is confident in providing the highest quality products to our customers. If you have any needs, please feel free to contact us at any time.
Showcases
-

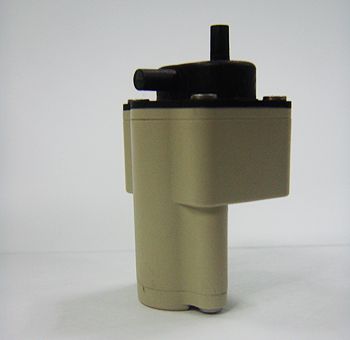

Specifications
Item Gear Pump Material ABS / POM Voltage DC4.5V ~ 12V Flow 80 ~150cc/m Reduction Ratio 4.44 OR 5.87
-

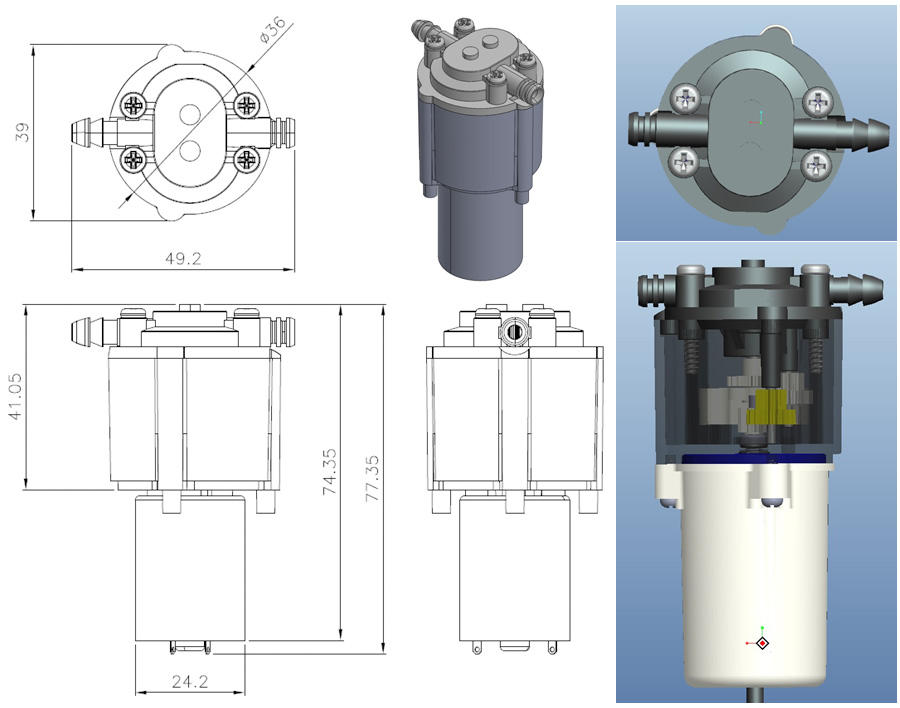

Specifications
Item Gear Pump Material ABS / POM Voltage DC4.5V ~ 12V Flow 80 ~150cc/m Reduction Ratio 6:48
-

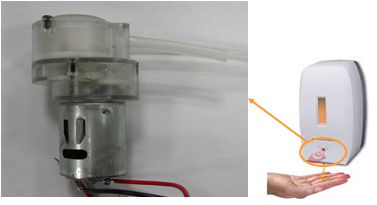

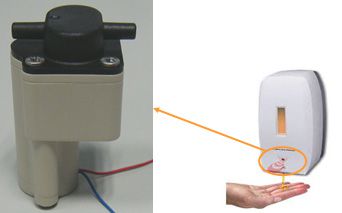

Specifications
Item Gear Pump Material ODM Voltage 4.5-6V Flow ODM Weight ODM Application Soap Dispensers
-
Specifications
Item Gear Pump Material ODM Voltage 6-12V Flow ODM Weight ODM Application Water Pump
-

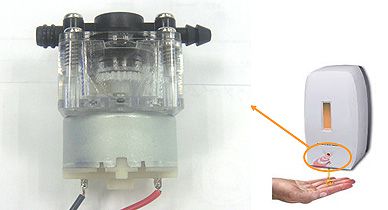

Specifications
Item Gear Pump Material Shelters and housing are made from ABS. Internal gears are made from POM. Voltage 6-12V Flow 120cc/m Weight 92.50g / set (gearbox with motor) Application Soap Dispensers
-

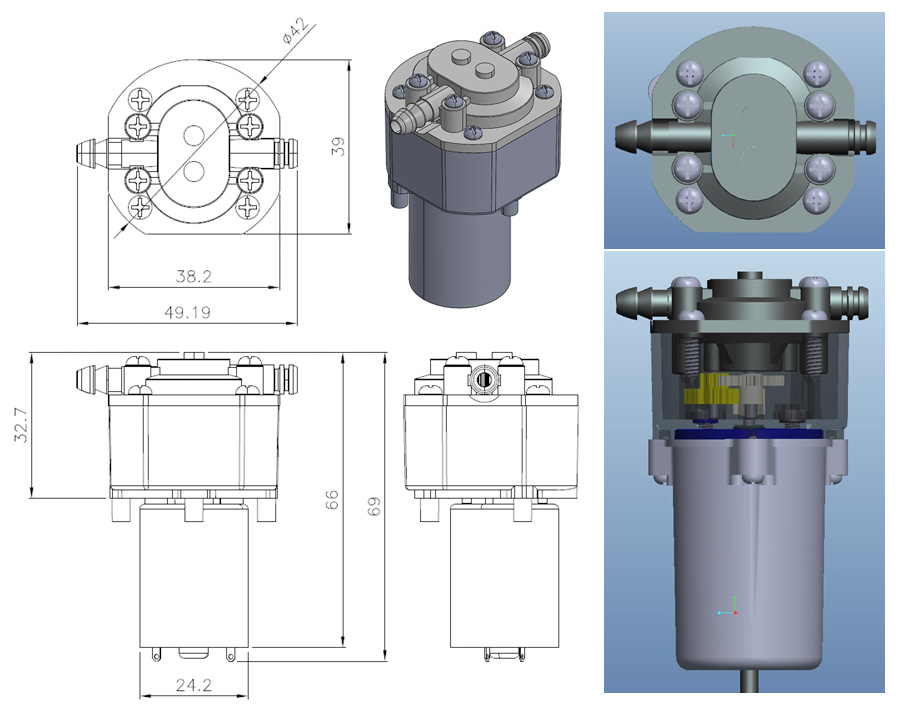

Specifications
Item Gear Pump Material Shelters and housing are made from PC. Internal gears are made from POM. Voltage 6-12V Flow 80-120cc/m Weight 67.10g / set (gearbox with motor) Application Soap Dispensers
Product Details
Gear Pump Gearbox
Specifications
Type: Gear Pump Gearbox (Gear box)Dimensions: N/A
Weight:=N/A
Reduction Ratio=N/A
Torque: Flexible
Rotational Speed: flexible
Material:
- Housing: ABS
- Gear: POM/ nylon
Target Markets: worldwide
Factory Locations: Taiwan and Guangdong Province of China
Water Pump
Specifications
Type: *****
Model No: *****
Dimension:
N/A
Weight=
N/A
Motor:
QFF-030DAV-08250
Voltage=
N/A
Motor
Speed= N/A
Application: *****
Factory
Location: Made in
Taiwan
Pump
Specifications
ODM or OEM
Type: PUMP
Model No:
N/A
Dimension:
N/A
Weight:
N/A
Gear
Ratio:
N/A
Application:
Factory
Location: Made in
Taiwan

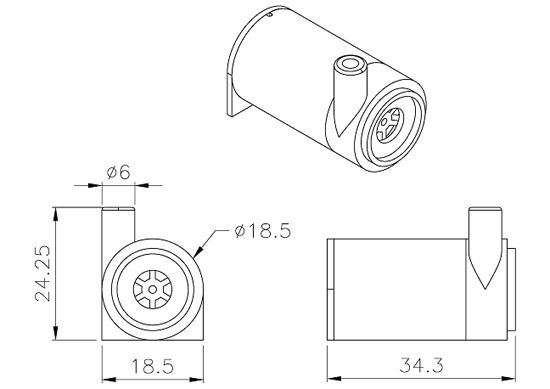

Micro Gear Pump
Specifications:
We accept any type of OEM/ODM
job.
Material: ABS / POM
Voltage: 4.5V
Flow: 150cc/m
Weight: 12.56g / set (gearbox with
motor)
Yeh Der has been to manufacture high-quality gears and gearboxes for industry since 1989. We provide both ODM & OEM services for gears and gearboxes (gear boxes), including designing, prototype making, manufacturing, assembling, testing, etc.
Our engineering has developed a broad range of gear and gearbox products, and on top of that, we have developed extremely flexible design and manufacturing capabilities in our nearly twenty years in business. This has allowed us to offer special features that help our customers simplify designs, improve performance and reduce costs.
With our strong engineering capabilities, we can develop precision gear and gearbox products to meet your most exacting requirements. We believe the key to reaching your performance goals is our working together.
