Low Speed Blender Gearbox
- Gear Ratio= N/A
- Output bearing torque= N/A
- Features: Dupont 70G43 internal gears are made in one piece. High density powder sinterred metal for the output gear; Stainless Steel for output shaft; PA66 for the first step.
Gear profile is designed for high-load and smooth running. With the motor of 110W5000RPM, running noise can be controlled under 55dB. Smooth operation and high output efficiency.
-
Specifications

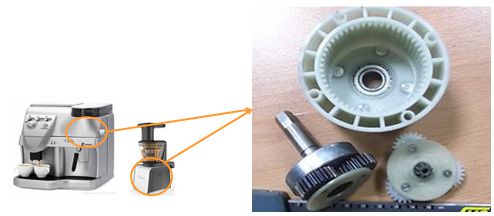

Item Low Speed Blender Gearbox Material Housing is made from PA66. Planetary gears are made from PA66 and Powder Metallurgy. Reduction Ratio 1:56.26 Load fo torsion 150kg - 200kg Weight 358.5g / set (only gearbox) Application Low Speed Blender, coffee machine etc.
